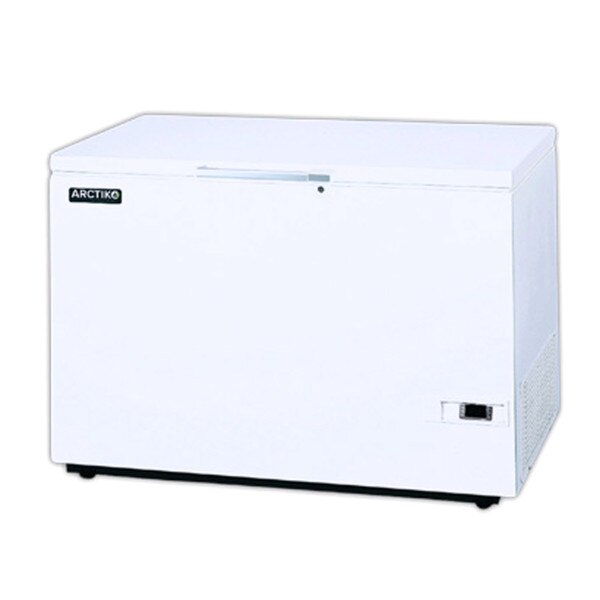

Arctiko Chest Super Freezer SF500

SKU: SF500
Size: 61.4"L x 27.1"W x 34.8"H (Interior dimension: 55"L x 17"W x 25.5"H), Capacity 13 cu. ft.
Note: Price includes freight within the continental US. ETL approved
$6,199.00
Out of Stock
Back
Specifications


Model Number

US-SF 500

Temperature Range (ºC)

-30/-60

Temperature Range (ºF)

-22/-76

Max. ambient temperature

77ºF

Capacity

368 L / 13 cu.FT

Exterior dimensions LxWxH

61.5" x 28" x 35"

Interior dimensions LxWxH

55" x 17.3" x 25"

Weight

194 lbs / 88 kg

Insulation

3.1 inches / 80 mm

Cooling technology

static

Controller model / probe type

Dixell XR30CX / PT 1000

Power supply

110V

Frequency

60 Hz

Power consumption

9.1 KWH/24H

AMP

6.3 A

Power

460 watts

Horse Power

1/2 HP

Warranty

2 years full warranty including parts, labor and freight. Additional 3 years warranty for replacement compressor part (excludes labor and freight).





Display / Alarm Functions


Alarm display as text - not codes

No

Visual / Acoustic Alarm

Yes

Power failure alarm

No

Adjustable high/low temperature alarm

Yes

Open door alarm

No

Probe failure alarm

Yes

Low battery alarm

No

Compressor failure alarm

No

Voltage free contact for remote alarm

Yes

Electronic data logger

No

RS 485 port

No

USB port for software update & data download

No

Temperature chart recorder

Optional

Display type

LED display with touch buttons

Password protection for turning unit on/off

No

Temperature graph on display

No





Other Features


Automatic defrost

No

Antifreeze function

No

Vacuum release port

No

Access port for external probe etc.

12

Light

No

Lock with key

Yes

Sub lids / sub doors (qty)

No

Reversible doors

No

Fixed shelves / adjustable shelves

No

Max no. of shelves / recommended max no. of shelves

No

Basket

Yes

Max no. of baskets

15

Max load per basket

14.5 kg

Total capacity of 50 mm boxes 9x9 dividers

282

Total capacity of 75 mm boxes 9x9 dividers

204

Total capacity of 96 mm boxes 9x9 dividers

129





Refrigeration & Cabinet


Number of compressors

1

Refrigerant

EP88

Interior Cabinet Material

Prepainted Steel

Exterior Cabinet Material

Prepainted Steel

Color (exterior cabinet)

White

Foam Type

Polyurethane

VIP vacuum insulated panels

No



Back
The SF500 freezer -60ºC has a high storage capacity of 13.5 cu.FT and it will store your samples under optimal conditions even when opening several times during the day. The single compressor technology ensure a high temperature uniformity. The cold air will stay inside the chamber and the hot air will raise and stay outside of the chamber. If you need a freezer you can open several times during a short time period, the LTF freezer is the best solution for your cold storage.

Super freezers are guaranteed with a two year full warranty, including parts, labor and freight. Additional 3 years warranty for replacement compressor parts (excludes: labor and freight).

Main Features
✔ Single compressor
✔ Low energy consumption
✔ Low noise level
✔ 100% HCFC/CFC free
✔ Castors and door key lock
✔ Porthole for external temperature probes

For detailed information on the Arctiko SF500:

Specifications

Mode Number

US-SF 500

Temperature Range (ºC)

-30/-60

Temperature Range (ºF)

-22/-76

Max. ambient temperature

77ºF

Capacity

368 L / 13 cu.FT

Exterior dimensions LxWxH

61.5" x 28" x 35"

Interior dimensions LxWxH

55" x 17.3" x 25"

Weight

194 lbs / 88 kg

Insulation

3.1 inches / 80 mm

Cooling technology

static

Controller model / probe type

Dixell XR30CX / PT 1000

Power supply

110V

Frequency

60 Hz

Power consumption

9.1 KWH/24H

AMP

6.3 A

Power

460 watts

Horse Power

1/2 HP

Warranty

2 years full warranty including parts, labor and freight. Additional 3 years warranty for replacement compressor part (excludes labor and freight).



Display / Alarm Functions

Alarm display as text - not codes

No

Visual / Acoustic Alarm

Yes

Power failure alarm

No

Adjustable high/low temperature alarm

Yes

Open door alarm

No

Probe failure alarm

Yes

Low battery alarm

No

Compressor failure alarm

No

Voltage free contact for remote alarm

Yes

Electronic data logger

No

RS 485 port

No

USB port for software update & data download

No

Temperature chart recorder

Optional

Display type

LED display with touch buttons

Password protection for turning unit on/off

No

Temperature graph on display

No



Other Features

Automatic defrost

No

Antifreeze function

No

Vacuum release port

No

Access port for external probe etc.

12

Light

No

Lock with key

Yes

Sub lids / sub doors (qty)

No

Reversible doors

No

Fixed shelves / adjustable shelves

No

Max no. of shelves / recommended max no. of shelves

No

Basket

Yes

Max no. of baskets

15

Max load per basket

14.5 kg

Total capacity of 50 mm boxes 9x9 dividers

282

Total capacity of 75 mm boxes 9x9 dividers

204

Total capacity of 96 mm boxes 9x9 dividers

129



Refrigeration & Cabinet

Number of compressors

1

Refrigerant

EP88

Interior Cabinet Material

Prepainted Steel

Exterior Cabinet Material

Prepainted Steel

Color (exterior cabinet)

White

Foam Type

Polyurethane

VIP vacuum insulated panels

No

Country of Origin: Denmark
